DESIGNED FOR PRODUCTION ENVIRONMENT

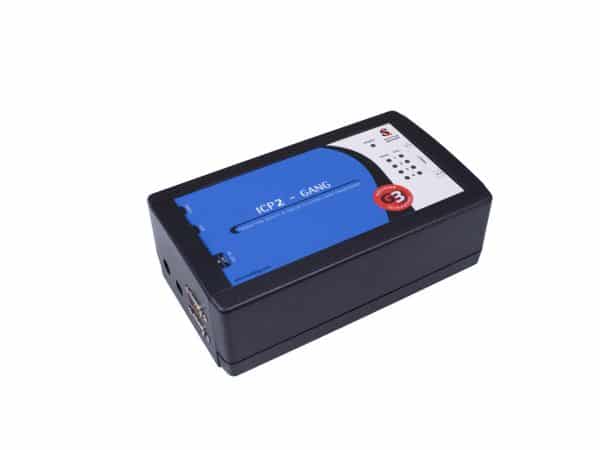

ICP2-GANG(G3)

4 channel in-circuit programmer

  • Up to 64 true parallel channels
  • Fast high-volume programming
  • Innovative, multi-layer IP protection (optional)
  • Easy ATE integration
  • PC or standalone operations
  • Cost-effective pricing options
Edit Content

Product Overview:

The ICP2-GANG(G3) is a robust four-channel programmer designed for a heavy mass production environment. Highly reliable and in production since 2006, this unit can flash four targets in a typical application or expand up to 64 targets in a daisy chain configuration. The programmer supports popular programming interfaces, including ICSP, SWD, JTAG, UPDI, I2C, SPI, TPI, PDI, UART, Microwire, SWIM, SWI, BDM, C2, SBW, etc., and works with any silicon chip. It is currently used with Microchip, ST, NXP, Nordic, Cypress, Texas Instruments, Silicon Labs, GigaDevice, and other microcontroller vendors.

Faster Time to Market
The ICP2- GANG(G3) scales up your production at high speed. Our Gap Eliminator™ technique reduces image size, while true parallel programming processes ensure that the targets are flashed at one time.Our speed optimization utility, which is built into the GUI interface, automatically configures the programmers’ settings for optimal speed performance.

As a result, you reduce time during the manufacturing process, generating operational cost savings.

Easy ATE Integration
Final test machine (FTM) DLL functions, Command Line, or Advanced Command Line allows for easy integration with test equipment, driven by a host system. Adaptable to bed-of-nails and other types of ATEs, ICP2-GANG(G3) helps you preserve your investment in test equipment. Additionally, the programmer can operate standalone (without connecting to PC) through a wired GO/PASS/Fail and environment selection interface.

24×7 Support
Our technical support team is available around the clock to ensure you have immediate solutions for any operational or maintenance issues that arise.

Edit Content

Specifications:

 High-Speed, Compact Programming Device
  • ICSP™, JTAG, SWD, UPDI, SPI, TPI, QSPI, UART, Microwire, SWIM, SWI, BDM, C2, SBW, etc. programming interfaces
  • Ultra fast programming of up to 64 channels simultaneously
  • Multiple devices can be connected in transparent daisy chain configuration
  • On-board 32MByte flash memory per channel for non-volatile storage of HEX, configuration and serialization files
  • Multiple serialization schemes:
    Sequential, random, pseudo-random and user file
    1 to 8 bytes, automatic “retlw”
  • Tests Vdd and Vpp for overload with indication by software
  • Dimensions: 195 x 110 x 68mm
Programmable Hardware
  • Wired remote programming via 3 lines: Go/Pass/Fail
  • Programmable Vdd (1.8 to 5.5V) and Vpp (1.8 to 13.5V)
  • Programmable delay between Vdd and Vpp (0.1 to 250ms)
  • Programmable clock/data speed (500KHz to 10MHz)
  • Programmable Vdd source: ICP2-GANG(G3) or target
  • Vdd current limit: 250mA per channel
  • Prevents damage to connected microcontroller in case of power ON and power OFF
Edit Content

Features:

Easy-to-Use Software
  • DLL / Command line / Advance Command line functions for automatic programming (optional)
  • Secure programming feature including hex file encryption, counter, and secure buffer (optional)
  • Standalone serialization
  • Four on-unit pass/fail alerts
  • Six environments per channel
  • Daisy chain setup option to increase capacity to 64 channels
Host System Requirements
  • Windows®- 7/8/10/11
  • Linux with Wine
  • USB or RS232 port
Edit Content

USB Driver Installation (1)

User’s Manual (5)

Specification (2)

to see the available information.

Special Documents (6)

Programming times

PDF | 149 KB
